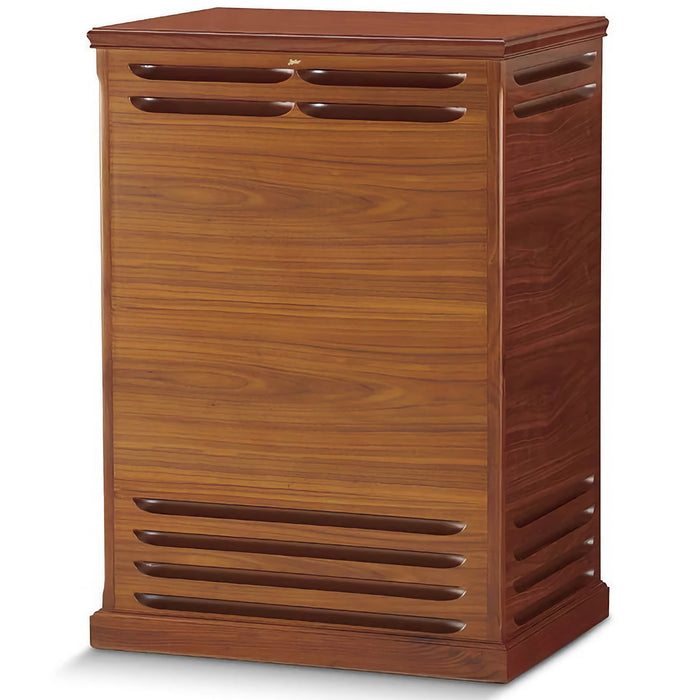

Leslie 122H Heritage Series Rotary Speaker

The Heritage 122H stands as a meticulous recreation of a legendary sound, born from original blueprints, expert engineering, and the close study of pristine antique Leslies. Its construction showcases unparalleled craftsmanship: fine lumber core cabinets, high-compression horn drivers, and classic rotor assemblies. This dedication to detail yields a speaker of timeless elegance and exceptional sonic richness. While rooted in vintage design, the 122H incorporates modern advancements like brushless DC servo motors, versatile input options, and switchable "122-style" and "147-style" tube preamps. Powered by a 40-watt tube amplifier and adorned with original-style louvers, the Heritage 122H bridges the gap between classic tone and contemporary performance. Every element, from the iconic "Leslie" decal to the thoughtfully arranged control panel, reflects Hammond-Suzuki's unwavering commitment to preserving the essence of iconic sound, fulfilling their mantra: "The Sound, The Soul, The One."

• A meticulous recreation of the original Leslie 122 tone cabinet.
• Include both 122 and 147 response curves, enabling you to have two different sound profiles in the same cabinet.
• The vacuum tube (valve) preamplifier and power amplifier give you the same classic warm sound as in the original speaker cabinets.
• The cabinet features three input connectors
• The brushless DC Servo motor is not affected by power frequency variations or voltage changes
• The motors allow you to adjust the Slow and Fast speeds and Rise and Fall Times of the rotors.

Specs

Type

• 1-channel (Rotary Channel Only)
• Mechanical Rotors

Power Output: 40watts RMS

Speakers

• Horn: High-compression Driver
• Low: 15˝ (38cm) Woofer

Vacuum Tubes

• Preamp: 12BH7 x 1
• Power amp: 12AU7 x 1, 6550 x 2

Control

• Volume: Master Volume
• Switch
• Power Switch, FOOT SW TYPE, 11-PIN Power Remote,

6-Pin Din Control Type

• Motor: Brushless DC Servo Motor x 2
• Rotor: Horn Rotor, Wooden Low Rotor

Rotor Adjustment

• Horn: Rise Time, Fall Time, Slow Speed, Fast Speed
• Low: Rise Time, Fall Time, Slow Speed, Fast Speed
• Led: Slow, Stop, Fast

Connectors

• 11-Pin Input
• 6-Pin Din Input
• Line Input 1/4" impedence 10k sensitivity 100mV (-18dBu)
• Foot Sw (Slow/Fast/Stop)

AC Inlet

• Power Consumption: 160 W

Dimensions: W 74.2 X D 52.4 X H 104.3 cm, W 29.2 X D 20.6 X H 41 inches

Weight: 57.7 kg / 127.2 lbs
